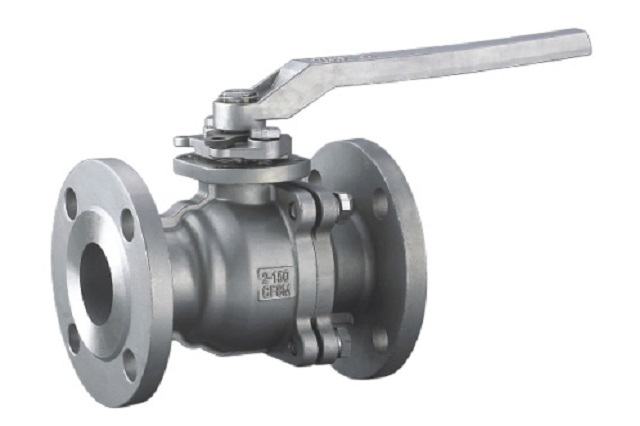

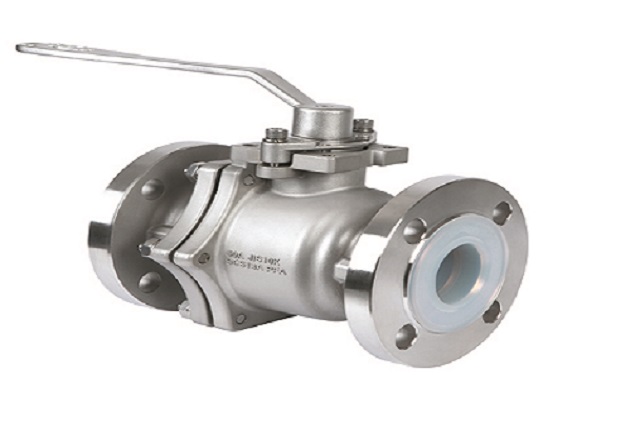

BALL VALVE FL1 SERIES
- Design standard : BS 5351/ ISO1792 / ANSI B 16.34
- Testing Standard : API 598 / ISO 5208
- Face TO Face : ANSI B 16.10
- Flange End : ANSI B 16.5, Other available
- Size Range : �� TO 4� (15MM To100 MM)
- Pressure Rating : 150 #/ 300 #
- Body Material : Carbon Steel, Stainless, Alloys
- Ball : SS 304, SS 316, SS316L, Alloys
- Seat : PTFE /RTFE
- Operation : Manual / Pneumatic Actuators With Accessories
- Brand : tRUEfLOW
BALL VALVE FL2 SERIES
- Design standard : BS 5351/ ISO1792 / ANSI B 16.34
- Testing Standard : API 598 / ISO 5208
- Face TO Face : ANSI B 16.10
- Flange End : ANSI B 16.5, Other available
- Size Range :�� TO 8� (15MM To100 MM)
- Pressure Rating : 150 #/ 300 #
- Body Material : Carbon Steel, Stainless, Alloys
- Ball : SS 304, SS 316, SS316L, Alloys
- Seat : PTFE /RTFE
- Operation : Manual / Pneumatic Actuators With Accessories
- Brand : tRUEfLOW
BALL VALVE FL3 SERIES
- Design standard : BS 5351/ ISO1792 / ANSI B 16.34
- Testing Standard : API 598 / ISO 5208
- Face TO Face : ANSI B 16.10
- Flange End : ANSI B 16.5, Other available
- Size Range : �� TO 6� (15MM To100 MM)
- Pressure Rating : 150 #/ 300 #
- Body Material : Carbon Steel, Stainless, Alloys
- Ball : SS 304, SS 316, SS316L, Alloys
- Seat : PTFE /RTFE
- Operation : Manual / Pneumatic Actuators With Accessories
- Brand : tRUEfLOW
BALL VALVE SR3 SERIES
- Design standard : BS 5351/ ISO1792 / ANSI B 16.34
- Testing Standard : API 598 / ISO 5208
- Face TO Face : ANSI B 16.10
- Flange End : ANSI B 16.5, Other available
- Size Range : �� TO 2� (15MM To100 MM)
- Pressure Rating : 150 #/ 300 #
- Body Material : Carbon Steel, Stainless, Alloys
- Ball : SS 304, SS 316, SS316L, Alloys
- Seat : PTFE /RTFE
- Operation : Manual / Pneumatic Actuators With Accessories
- Brand : tRUEfLOW
BALL VALVE SR1 GEN SERIES
- Design standard :BS 5351
- Testing Standard : API 598
- Face TO Face : ANSI B 16.5, Other available
- Flange End : ANSI B 16.5, Other available
- Size Range :�� TO 2� (15MM To50 MM)
- Pressure Rating :1000PSI
- Body Material :Stainless Steel
- Ball : SS 304, SS 316, SS316L
- Seat : PTFE /RTFE
- Operation :Manual
- Brand : tRUEfLOW

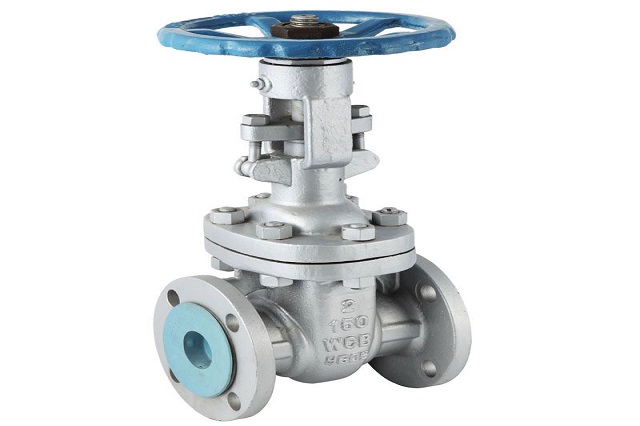

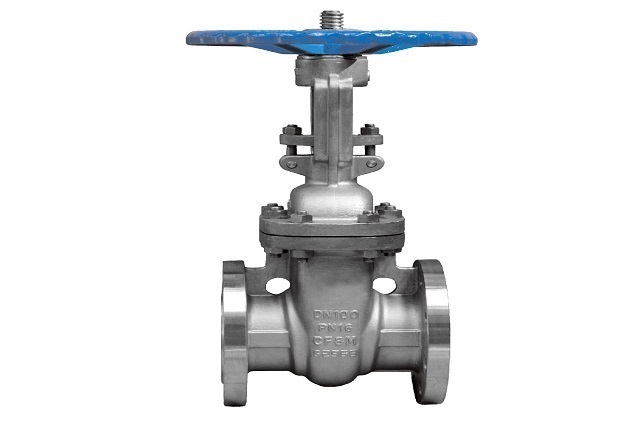

GATE VALVE
- Design standard : API 600
- Testing Standard : API 598
- Constructing : Bolted Bonnet
- Face TO Face : ANSI B 16.10
- End Connection : Flanged End ANSI B 16.5
- Size Range :�� TO 12� (15MM To300 MM)
- Pressure Rating : 150 #/ 300 #
- Body & Bonnet Material : ASTM A 216 Gr. WCB / ASMT A 351 Gr. CF8/CF8M
- Wedge Material : ASTM A 217 Gr. WCB + 13% CR./ ASMT A 351 Gr. CF8/CF8M
- Seat : SS 410, SS 316 , Stellite Available
- Operation : Manual
- Brand : tRUEfLOW
GOLBE VALVE
- Design standard : API 600
- Testing Standard : API 598
- Constructing : Bolted Bonnet
- Face TO Face : ANSI B 16.10
- End Connection : Flanged End ANSI B 16.5
- Size Range :�� TO 8� (15MM To 200 MM)
- Pressure Rating : 150 #/ 300 #
- Body & Bonnet Material :ASTM A 216 Gr. WCB / ASMT A 351 Gr. CF8/CF8M
- Pressure Rating : AISI 410, AISI 304 , AISI 316
- Brand : tRUEfLOW

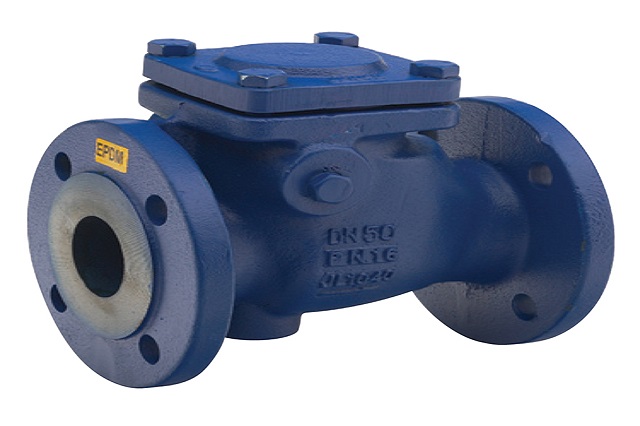

CHECK VALVE
- Design standard : API 600
- Testing Standard : API 598
- Constructing : Swing type /Lift type
- Face TO Face :ANSI B 16.10
- End Connection : Flanged End ANSI B 16.5
- Size Range :�� TO 8� (15MM To 200 MM)
- Pressure Rating : 150 #/ 300 #
- Body & Bonnet Material :ASTM A 216 Gr. WCB / ASMT A 351 Gr. CF8/CF8M
- Plug Material: AISI 410, AISI 304 , AISI 316
- Seat : SS 410, SS 316
- Brand : tRUEfLOW
FORGED STEEL GATE, GLOBE, CHECK VALVE
- Design standard : API 602 / ANSI B 16.34
- Testing Standard : API 598
- Constructing : Bolted Bonnet/li>
- Face TO Face :Manufacture�s Standard
- End Connection : Screwed To BSP,BSPT, NPT/ Socket Weld To ANSI B 16.11
- Size Range : �� TO 2� (15MM To 50MM)
- Pressure Rating : 150 #/ 150 #
- Body & Bonnet Material :Forged Carbon Steel/ Forged Stainless Steel
- Seat : SS 410, SS 316 , Stellite Available
- Operation : Manual
- Brand : tRUEfLOW

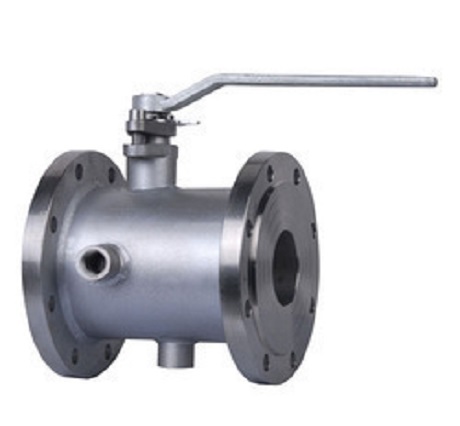

JACKETED BALL VALUE
- Design standard : BS 5351/ISO1792/ANSI B 16.34
- Testing Standard : API 598 / ISO 5208
- Face TO Face : ANSI B 16.10
- Flange End : ANSI B 16.5, Other available
- Size Range : � � TO 4�(15MM To100 MM)*1�To6�(25MM To 150MM)
- Pressure Rating : 150 #
- Body Material : Carbon Steel, Stainless, Alloys
- Jacket Material : MS / SS
- Ball : SS 304, SS 316, SS316L, Alloys
- Seat : PTFE /RTFE
- Operation : Manual / Pneumatic Actuators With Accessories
- Application :Temperature-dependent viscosity fluids/ chemicals
- Brand : tRUEfLOW
